Selective Warehouse Pallet Racking Storage Rack Metal Materials Orange Color
Products Description:
| Specification | Beam Length(mm) Each layer load capacity(kg) |
| 2300mm | 2500mm | 2700mm | 3000mm | 3300mm | 3600mm |
| 100 x 38 x 1.5mm | 2200kg | 2000kg | 1400kg | 1100kg | | |
| 110 x 38 x 1.5mm | 2500kg | 2200kg | 1800kg | 1600kg | | |
| 120 x 48 x 1.5mm | 3200kg | 3000kg | 2500kg | 2200kg | 2000kg | 1200kg |
| 140 x 48 x 1.5mm | 3600kg | 3200kg | 3000kg | 2500kg | 2000kg | 1800kg |
| 150 x 48 x 1.5mm | 4000kg | 3600kg | 3400kg | 3200kg | 2800kg | 2200kg |

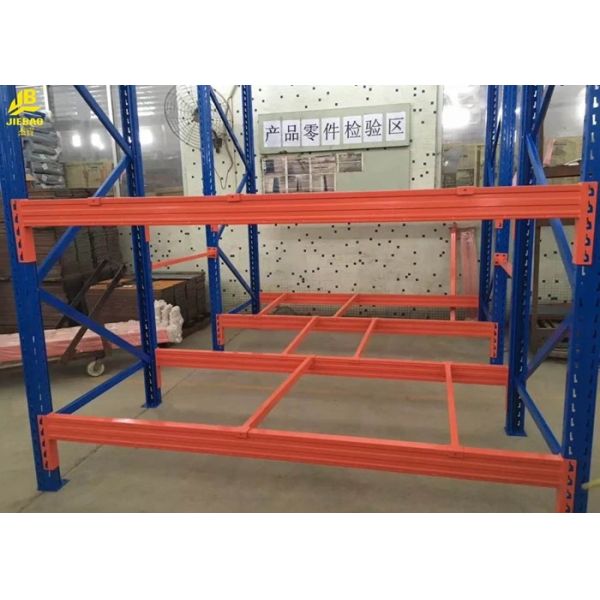

JB-10 Pallet Racking, usually consist of upright frame, beam, pallet support and standards components.
H-bracing and D-bracing connect with upright by nylon self-lock bolts, can effectively prevent racking from losing balance cause by the release of the bolts.
Drum-shaped holes are punched on the upright, so beam can be adjustes by 75mm.
Feature:
It can load 1000-4000kg/layer, stronger than the P-type beam, square beam. Adopt the structure that the beam hitching on the frame, Optimizing secion design, coordinate with plastic pallet.
Package:
Bubble Package. JB-10 have Disassembly columns or Non-Disassembly columns two type.
Disassembly columns: 2pcs upright/package; 30-50pcs horizontal bracing and diagonal bracing/package; 2pcs beams/package.
Non-Disassembly columns: 1 pcs columns/package; 2pcs beams/package.
Using Non-Disassembly columns are easy to installtion my yourshelves. The disadvantage is that
Shipment cost will be higher, Non-Disassembly columns will take up more place.
Using Disassembly columns can save loading container place, but you have to hire professional worker to install Columns, it will take more time to install racking.
